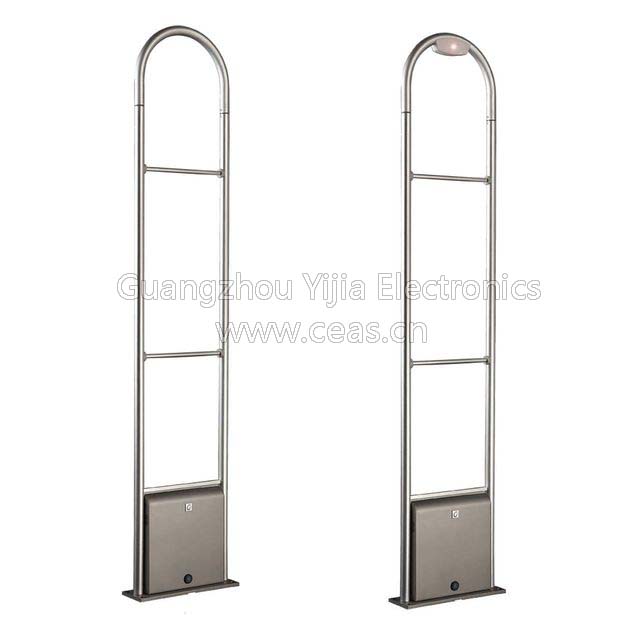

NAME Focus ¢ó(RF) MODEL Focus ¢ó

Style description:
Focus ¢ó detection antenna integrate the top-class radio frequency technology of Europe, its aluminium alloy make it different from others using stainless steel material, sturdy, wear-resistant and anti-oxidant; graceful in style. this Focus ¢ó detection antenna is the best choice for supermarkets, malls, boutiques, bookshops and other distribution shops.

¡ñUsing aluminium alloy to make the antenna frame, this high-class material exert RF technology to greatest extent, greatly improve the sensitivity and anti-jamming.
¡ñDetection Width: in ideal electromagnetic environment, 1.2m for RF soft labels and 2.0m for hard tags.
¡ñDigital Signal Processing(DSP) micro programming technology: digital signal processing, use high-speed DACs, multiple sampling technology, greatly improve the system detection rate, high alarm accuracy, good stability.
¡ñTop scanning identification system can distinguish between tags signal and interference signal correctly, high sensitivity, fast detection speed.
¡ñIdentity recognition technology: edit the identity recognition code in transmiting modulation, different from traditional frequency hopping.
¡ñAdvanced Automatic Gain Control(AGC) technology, double identify AGC for a better adaptability.
¡ñThe main function was controlled by DSP digital chip and intelligent application software.
¡ñHigh magnetic filter enhance the anti-jamming ability.
¡ñ Electromagnetic environment can be revealed clearly by LED light, for easily debugging.
¡ñAdvanced stagger frequency technology, avoiding the jamming of similar products.

Parameters:
Transmitter center frequency¡­¡­¡­¡­¡­¡­¡­¡­¡­8.2MHz
Scanning frequency¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­150/160/170/180Hz(default)
Scanning bandwidth¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­600-1500KHz
Output impedance¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­10¦¸
Receiver center frequency¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­8.2MHz
Scanning frequency¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­150/160/170/180Hz(default)
Input impedance¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­200¦¸
