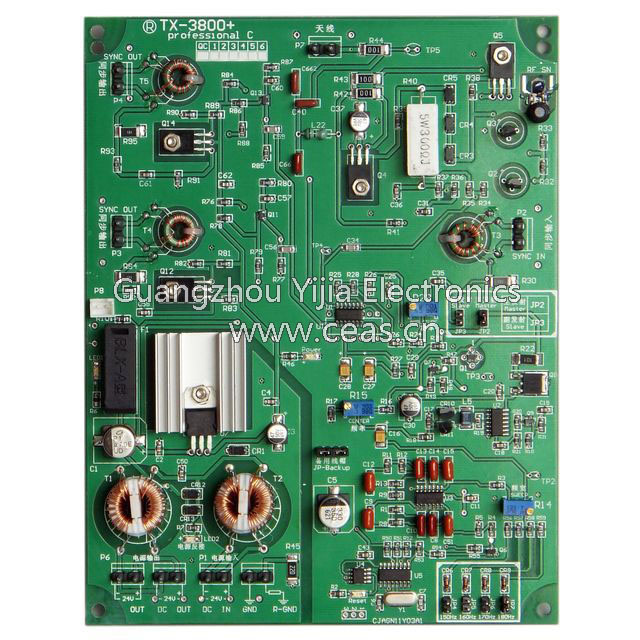

NAME 3800+ TX Board(RF) MODEL TX-3800+

3800+ Transmitting Mainboard

YIJIA Electronics Co. ,Ltd , one of the EAS manufacturers as a senior in China, focus on research and technology development in EAS industry over the years, with the solid experience in EAS equipment installation, a variety of customer's use and feedback, has developed multiple first techniques in domestic EAS industry. These techniques have used in its several mainboards: 3800+, 3810+, 4800+ and 4810+.
Details about the 3800+ mainboard performance:

A. Original functions from YIJIA Electronics 3800+ mainboard:
1. Active interfering signal independent LED indicator: using two flash lights LED3 and LED4 to show active interfering signal when making an installation, in order to facilitate on-site troubleshooting.
2. A converse power polarity protection and LED indicator: some customers had the mainboard broken when they made a converse power polarity, in view of this situation, adding a protection network is necessary. The mainboard has a LED that shows a converse power polarity, and the mainboard will be protected, the board will never broken by a converse power polarity.
3. A fault fuse LED indicator: if the fuse is broken, the LED beside will light up immediately.
4. Frequency independent power supply network: to ensure the stability of the frequency signals, and not to be affected by other components or the voltage fluctuations.
5. Anti-interference reinforcement selection: you can select the receiving board to resist more interfering signal by a Short Route JP4.
6. RFID(Radio Frequency Identification) anti-counterfeit code: with a unique RFID on each mainboard, it can be identified through the website.

B.  Other functions:
1.  Showing on-site interfering signal with three green LED lights DS1, DS2 and DS3, in order to facilitate on-site troubleshooting and to adjust the equipment.
2.  PIF detection technology: extract the effective signal in the noise by the digital comb filter.
3.  Using a Digital PLL(phase-locked loop) technology to reduce noise signal, improving the system's ability for resisting Co-channel interference.
4.  Frequency dislocation technology: it¡¯s unnecessary to make a signal synchronization when straight-line distance¡Ý15 meters between two similar detection systems. It reduces a cost of synchronization cable, and has a convenience for the project implementation and installation.
5.  Gate installation distance: in an ideal  Electromagnetic environment, it has a 1.2 meters installation distance for soft label and 1.8 meters installation distance for tag.
6.  Low power consumption, a simple appearance, a reliable performance, and a good on-site adaptability.
7.  It meets the needs of supermarkets, department store, clothing store, sporting goods stores and others.

Parameters:
Input voltage ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­DC24V
Rated current ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­350mA
Rated power¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­<9W
Center frequency¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­8.2MHz (default)
Frequency range¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­7.2~10.5MHz
Scanning frequency¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­150/160/170/180Hz(default)
Scanning bandwidth¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­600-1500KHz
Output impedance ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­10¦¸
Sync input interface¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­1PCS
Sync output interface¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­2PCS
Fuse specification ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­500mA/250V
Operating temperature¡­¡­¡­¡­¡­¡­¡­¡­ £­10¡æ--60¡æ
Operating humidity¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­0%-95%
Size¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­150*191mm
Weight ¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­¡­163g
