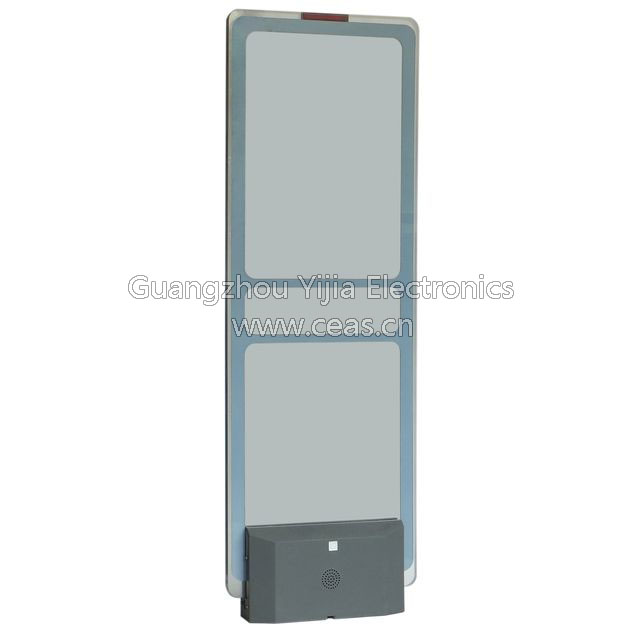

Style description: All-digital Germany imports Acousto Magnetic system is the most advanced mono acousto magnetic system with a frequency of 58KHz. It applies to all the acousto magnetic tags/labels of 58KHz, using German technology, digital and Embedded System with preprogrammed control, with a software control system, it shows all the interference signal clearly real time on computer screen, and shows a diagrammatic signal. It is very convenient and intuitive to adjust the system with the software, and it adapts to electromagnetic environment automatically. Using a multiple detection technology to reduce the possibility of false alarms greatly. The maximum gate installation distance reach to 3.6 meters in an ideal electromagnetic environment.
●Using a German original motherboard, advanced intelligent acousto magnetic detection technology, digital system and the most advanced Digital signal processing technology. ●It has a periodic self-detecting according to the electromagnetic environment, to achieve the correct alarm. ●Advanced Digital signal processing technology and a mono mode control technology, preprogrammed Embedded System, shows all the interference signal and tag/label signal real time on computer screen with a software. It is convenient and intuitive to adjust the system. ●Multi-aisle detecting technology: processing all the signals through the Digital filter, to reduce the blind spot detection for tag/label, it effectively improve the tag/label detection range. ●A good resistibility to interference signal, hardly false alarms, low power consumption, a good compatibility. ●Wireless sync technology: with the software, it has a selective synchronization bursts for different phase angle, preventing interference in a same frequency. Eliminating the need for cumbersome operation of signal synchronization. ●It has an elegant appearance, refined and elegant shape design, using an imports acrylic material, combine fashion with durability all together. ●It applies to all the acousto magnetic tags/labels of 58KHz.
Parameters: Input voltage ………………………………………………AC220V Rated current ………………………………………………100mA Rated power………………………………………………<20W Operating frequency…………………………………………58KHz±200 Hz(default) Repeat sending bursts frequency on each antenna……………37.5Hz (50Hz synchronization) ……………45Hz (60Hz synchronization) Repeat detecting frequency on each antenna…………………150Hz (50Hz synchronization) …………………180Hz (60Hz synchronization) In turn sending bursts frequency on 3 antennas………………37.5Hz (50Hz synchronization) ………………45Hz (60Hz synchronization) Width of sending bursts………………………………………1.6ms Receiver detecting time width…………………………………1.6ms Sound and light alarm voltage…………………………………DC12V Sound and light alarm current…………………………………100mA Selective alarm time……………………………………………1~10seconds Style of alarm sound …………………………………………4 kinds Fuse specification 1 …………………………………………100mA Fuse specification 2 …………………………………………800mA Fuse specification 3 …………………………………………800mA Operating temperature ……………………………………… -10℃--60℃ Operating humidity …………………………………………0%-95% |
